![Ronstan Series 20 ball Bearing Block – Triple – 2-Axis Shackle head [RF20302]](https://www.acceelectrical.com/wp-content/uploads/2025/4/1745116726/ronstan-series-20-ball-bearing-block-triple-2-axis-shackle-head-rf20302-1745116738.webp)
Description
Series 20 Ball Bearing Block – Triple – 2-Axis Shackle Head
Features:
- Low friction
- High static and dynamic load capacity
- Lightweight
- Precision molded Acetal sheaves running on stainless steel or Torlon ball bearings provide high performance & low friction
- Two-Way head can be fixed at 0 or 90
Applications:
- Dinghy control lines
- Dinghy vangs
- Cunninghams
- Traveller controls
Materials:
- Stainless steel ball bearings
- UV Stabilized Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fiber reinforced Nylon cheeks
Specifications:
Sheave :t20mm(3/4″)
Max. Rope :t6mm(1/4″)
Pin: 4mm(5/32″)
M.W.L.:t400kg(880lbs)
B. L.:t850kg(1,870lbs)
Weight:t62g(2.2oz)
![Ronstan Series 20 Ball Bearing Block – Double – 2-Axis Shackle Head [RF20202]](https://www.acceelectrical.com/wp-content/uploads/2025/4/1745116726/ronstan-series-20-ball-bearing-block-double-2-axis-shackle-head-rf20202-1745116738.webp)
![Ronstan Series 30 Ball Bearing Orbit Block – Triple [RF35302]](https://www.acceelectrical.com/wp-content/uploads/2025/4/1745116726/ronstan-series-30-ball-bearing-orbit-block-triple-rf35302-1745116738.webp)
![Ronstan Series 20 Ball Bearing Block – Single – Cheek Rivet Mount [RF20151A]](https://www.acceelectrical.com/wp-content/uploads/2025/4/1745116726/ronstan-series-20-ball-bearing-block-single-cheek-rivet-mount-rf20151a-1745116738.webp)

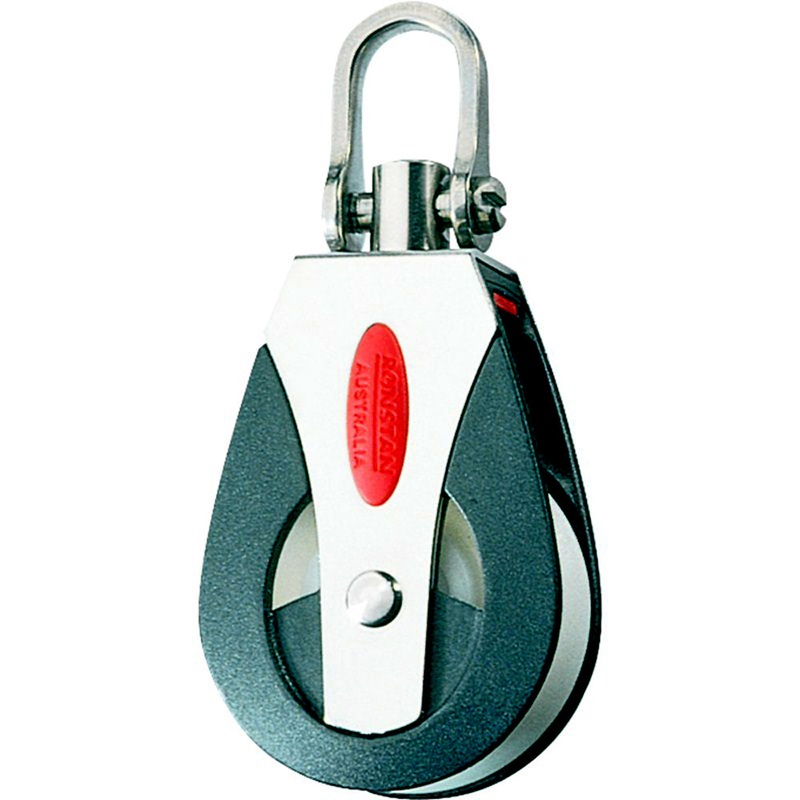

![Ronstan Series 40 Ball Bearing Block – Single – Universal Head [RF40100]](https://www.acceelectrical.com/wp-content/uploads/2025/4/1745116726/ronstan-series-40-ball-bearing-block-single-universal-head-rf40100-1745116738.webp)
